1/10 R/C M-08R Chassis Kit

Name: 1/10 R/C M-08R Chassis Kit
Brand: WITTMAX
SKU: 545692
Price: 3659.0 DKK
Availability: InStock

3.659,00 kr

3.659,00 kr 6.029,00 kr

Udsalg Udsolgt

Inklusive skat. Levering beregnes ved betaling.

Only 9 units left

Hurtig levering
30 dages returret
Dansk kundeservice
Sikker betaling

Sikker betaling med

Leverandør:
WITTMAX
Type:
Fjernstyrede biler
Tags: 1:10, Elektrisk, Fjernstyrede biler, Onroad, Vestergaard, Wittmax

Om produktet

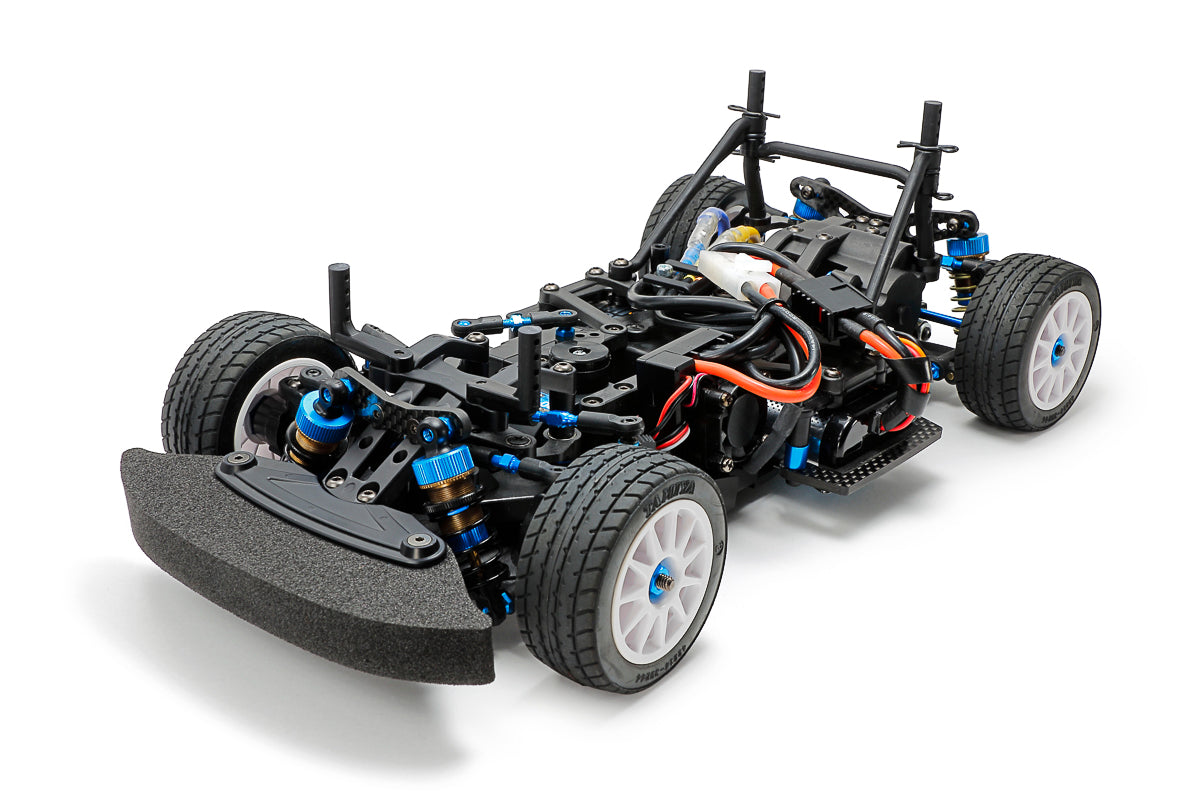

1/10 R/C M-08R Chassis Kit

Re-Issue / Limited Edition

RWD Racer

The M-08R adds a plethora of race-spec parts to the balanced, compact RWD M-08 Concept chassis: an example being the hopped-up drivetrain with a ball differential, universal shafts featuring low-friction cross joints and lightweight aluminum swing shafts, plus 5mm wheel hubs. Turnbuckle shaft suspension arm and steering setup components simplify fine-tuning of the M-08R, and titanium-coated shafts are a durable inclusion in the kit.

Carbon fiber damper stays are paired with M-Chassis big bore aluminum dampers+ featuring dedicated blue anodized top and bottom caps for a touch of class, while a 20-gram ballast weight is included to get the chassis feeling just how you want it to.

Featured Components!

Featured Components Drivetrain:

Full ball bearings
Ball differential (52T)
33mm lightweight aluminum swing shafts
Cross joint for LF assembly type universal shafts
06 module fluorine coated 20T pinion gear
M-08 Concept aluminum shafts
M-Chassis reinforced freewheel axles
5mm clamp-type wheel hubs

Featured Components Suspension

Carbon fiber damper stays (front/rear)
Reinforced D parts (suspension arms)
Aluminum turnbuckle shafts
Titanium coated suspension shafts
5x5mm, 5x11mm hard hex head ball connectors
M-Chassis big bore aluminum dampers+
3x 1.3mm-hole pistons
4mm aluminum serrated wheel nuts (blue)
5mm reinforced open face adjusters

Featured Components Chassis:

Carbon fiber battery holder
Carbon fiber body mount base
Reinforced K parts (gearbox)
Chassis balance weight (20g)
Hi-torque servo saver
Aluminum ball connectors (blue)
Hex head screws

Separately Required Items

2-channel R/C system, with 1 servo.
ESC - Electronic Speed Control.
Batteries for transmitter.
7,2 Volt Battery Pack & Charger.
Tires and Wheels.
Body shell.
Type 540 Motor.
Tamiya Spray for Polycarbonate - PS Type.

Specifications:

Length: 319mm (with 225mm wheelbase), width: 165mm
Alterable wheelbase: 210mm, 225mm, 239mm
Monocoque frame with separate front and rear sections
Midship motor, rear-wheel drive
Ball differential
3-piece steering tie-rod
4-wheel double wishbone suspension
M-Chassis big bore aluminum dampers+
Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions)

1/10 R/C M-08R Chassis Kit Tech Spec Images


Turnbuckle shafts in the steering can be rotated to fine-tune setup. A hi-torque servo saver is included in the kit as standard.	High performance M-chassis aluminum big bore dampers+ are included, and feature blue anodized top and bottom caps for a classy look.	Upper arms are also a turnbuckle shaft design. Clamp type wheel hubs (5mm) and reinforced freewheel axles are also in the box.

Battery holders are crafted in 3mm thickness carbon fiber material. Use the provided sponge tape as necessary to ensure snug battery fit.	A midship motor powers the rear wheels. The sealed rear gearbox houses a ball differential for limited-slip diff effect.	This image goes close-up on the double wishbone rear suspension. Note the carbon fiber damper stay for the big bore aluminum dampers.
