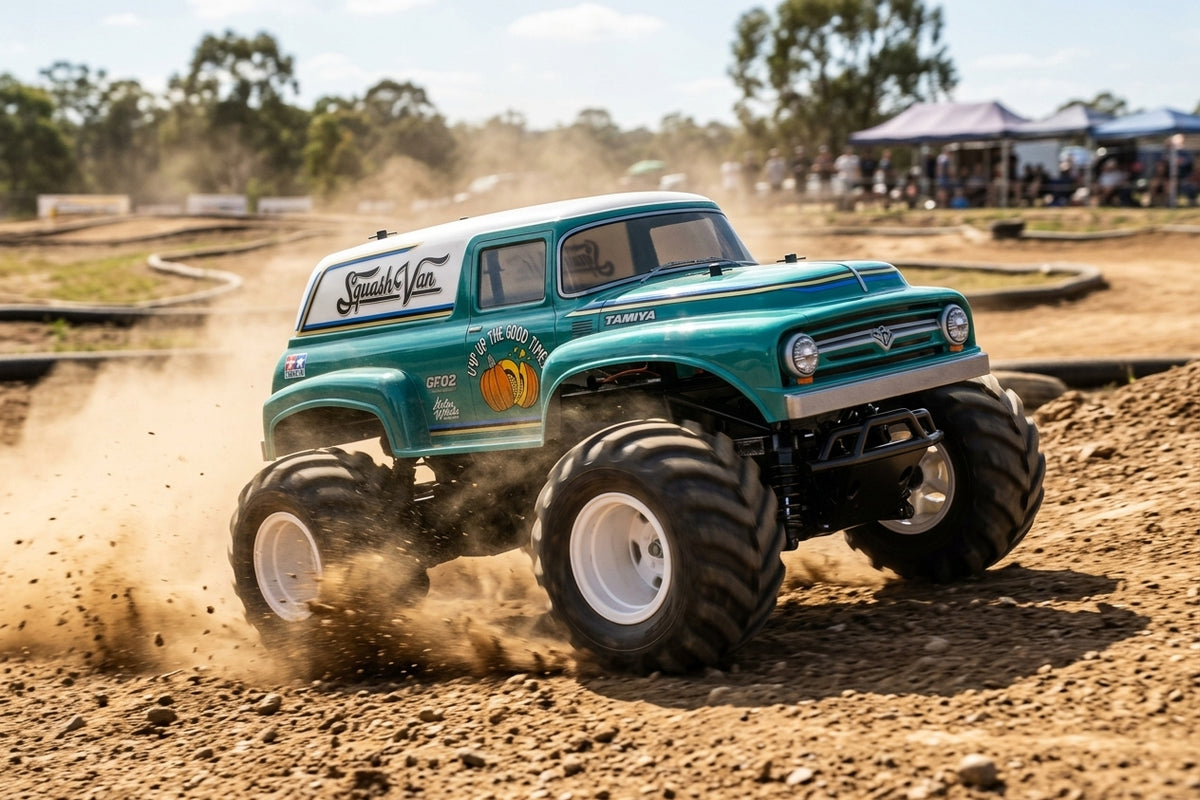

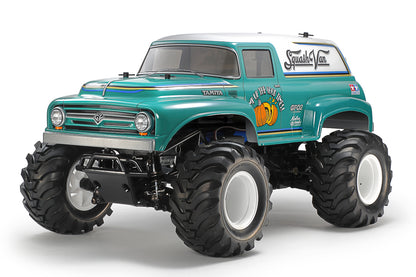

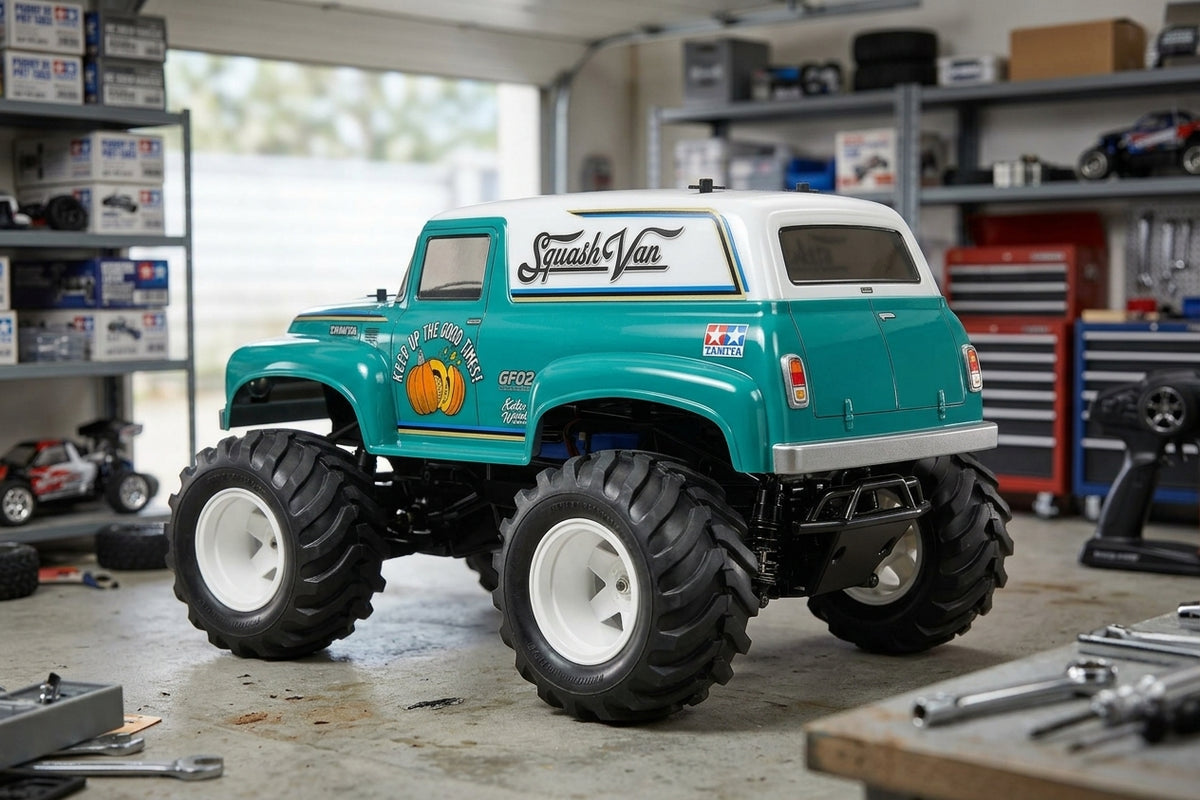

1/10 R/C Squash Van (GF-02)

Tamiya is delighted to announce a new off-road car featuring big tires; the name is the Squash Van, and it is paired with a new gear-driven 4WD GF-02 chassis. While the GF-01 chassis features a comical design, the GF- 02 chassis employs a more realistic wheelbase and a frame with ladder / pipe motifs.

 This R/C assembly kit is inspired by 1950s American panel vans, and offers an excellent drive even on grass or uneven surfaces.

About the Model
• This is a 1/10 scale R/C model assembly kit. Length: 454mm, width: 280mm, height: 238mm. Wheelbase: 267mm.
• 123mm large-diameter lug pattern tires allow powerful performance and superior handling feel.
• Stickers feature designs such as squash illustrations, product logo, and triple pin stripes in gold, black and blue.

About the GF-02 chassis
The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensures stable off-road performance.

The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road.
The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods.

Useful Materials from Tamiya.com

Please note all links below goes to www.tamiya.com

R/C Parts Matching List	R/C Chassis Parts Catalogs	R/C Model Chassis List	R/C Manual Download Page
Click here to get the latest list of Hop-Up Option and Spare Parts compatibility.	Click here for catalogs of parts for use with various chassis.	Click here to see a list of links to pages for major Tamiya chassis.	Some of our R/C manuals are available for download.Click here to visit the page!

Please Note: Error in Item 58725 instruction manual

It has come to our attention that the instruction manual of Item 58725 1/10 R/C Squash Van (GF-02) has errors about the wheel information.

*Page 26
-Incorrect parts number: 19335899
-Correct parts number:   10440024

*Parts list
- Incorrect information: 19335899 Wheel (x2 pairs)
- Correct information:   10440024 Wheel (x1 pair)
