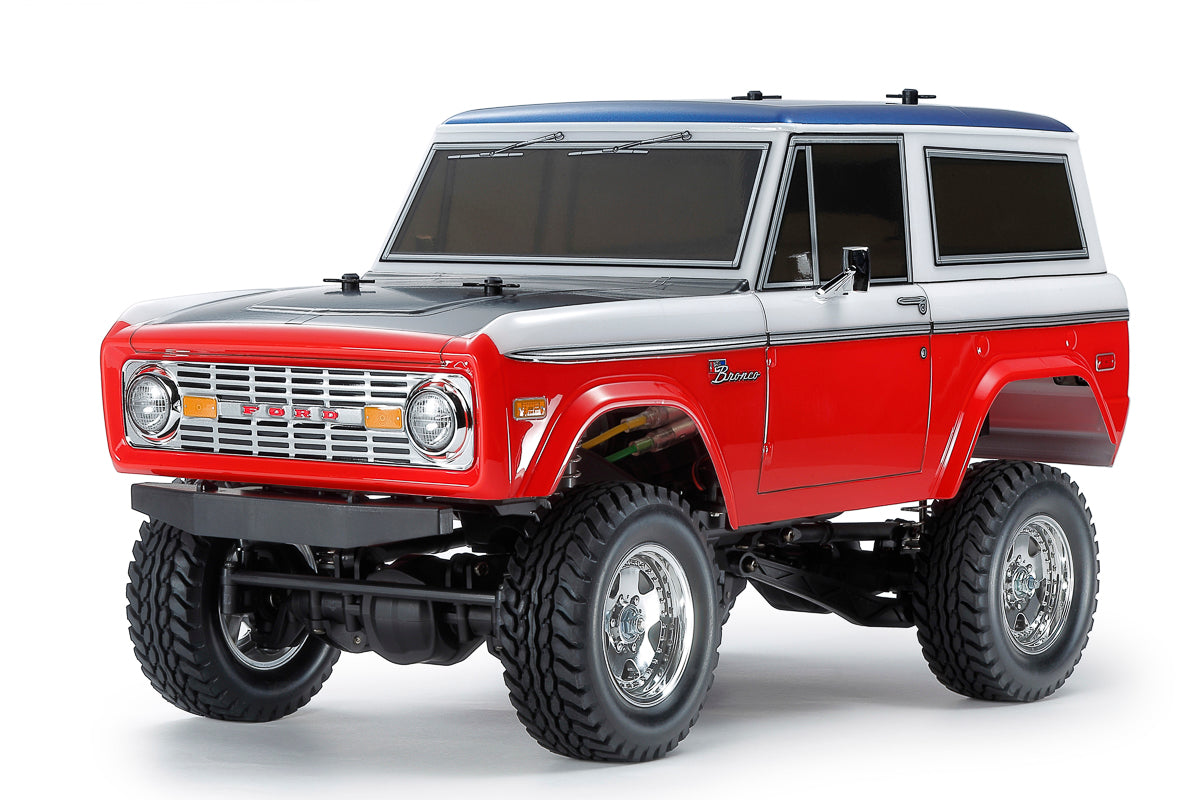

1/10 R/C Ford Baja Bronco (CC-02)

Tamiya is delighted to announce the release of the Ford Baja Bronco as our new R/C model on the cross country CC-02 chassis.

The first generation Ford Bronco was relatively compact and extremely capable off-road, and this 4WD car joined numerous races. The Baja Bronco was sold from 1971 to 1975 to commemorate victory in a major desert race. It had a white and red body with blue roof and black hood plus reinforced sections such as suspension, and this special Bronco enjoys great popularity even in the modern day.

About the model
• This is a 1/10 scale R/C model assembly kit. Length: 395mm, width: 196mm, height: 215mm. Wheelbase: 242mm (Short wheelbase).
• The lightweight, durable polycarbonate body (the same body as the one used on Item 58436) realistically captures the Ford Baja Bronco in style.
• The distinctive color scheme with red, white and blue requires painting.
• Matte-finish hood is recreated by stickers.
• The CC-02 chassis has ladder frame which was inspired by full-size vehicles, provides both rigidity and cool styling, and allows stable performance even on tricky rocky and dirt roads.
• 5-spoke wheels are paired with block pattern tires.
• Includes short propeller shafts.

CC-02 Chassis - Off Road, Evolved

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability.

A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections.

CC-02 Tech Spec Images

Both front and rear ends of the CC-02 chassis utilize 4-link rigid setups with shock absorption provided by CVA oil dampers.	The motor is mounted in the chassis front-middle; power goes via gearbox and propeller shafts to front and rear axles.	Up to 20 different gear ratios can be achieved with reassembly of the gearbox and use of separately sold pinion gears.
Reinforced plastic axle housings each contain a differential, which can be locked with reassembly.	A highly capable off-road drive awaits, with shaft-driven 4WD and front/rear 4-link rigid suspension setups on the CC-02 chassis	Axle housings are molded in reinforced plastic, and house 3-bevel differentials. They can be locked when running on lower-grip surfaces
